New OptiPlex Small Form Factor Plus

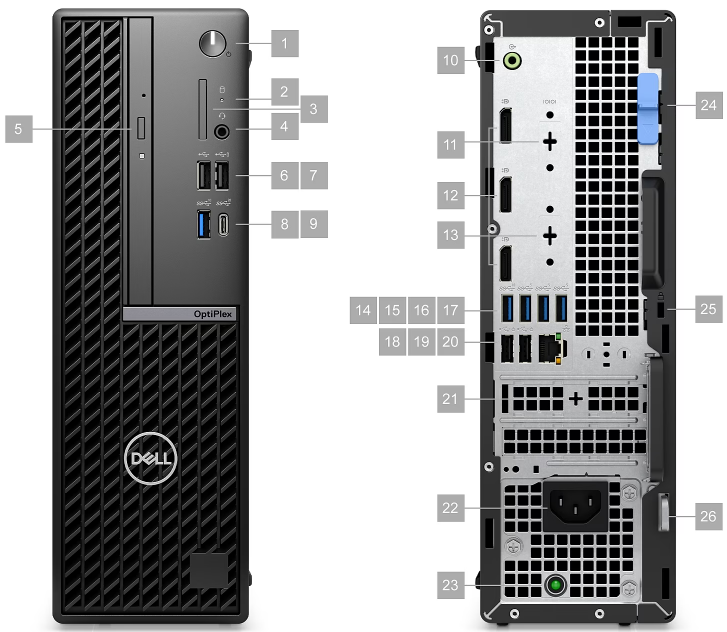

| Front | Back |
|---|---|
| 1. Power Button | 10. Re-tasking line-out/line-in audio port |
| 2. Hard-disk drive activity light | 11. Option not available on SCU systems |
| 3. Option not available on SCU systems | 12. 3 x DisplayPort 1.4a (each up to 4096 x 2304 @ 60 Hz) |
| 4. Universal audio port | 13. Option not available on SCU systems |
| 5. Option not available on SCU systems | 14. USB 3.2 Gen 2 |
| 6. USB 2.0 | 15. USB 3.2 Gen 1 |
| 7. USB 2.0 with PowerShare | 16. USB 3.2 Gen 1 |
| 8. USB 3.2 Gen 2 | 17. USB 3.2 Gen 1 |
| 9. USB 3.2 Gen 2x2 Type-C | 18. USB 2.0 with Smart Power On |
| 19. USB 2.0 with Smart Power On | |
| 20. RJ-45 Ethernet | |
| 21. Two Expansion Card Slots | |
| 22. Power Cord Connector | |
|
23. Power Supply Diagnostic Light |
|
|
24. Release latch |
|
|
25. Security-cable slot |
|
|
26. Padlock ring |
- Width - 3.7 inches
- Depth - 11.5 inches
- Height - 11.4 inches
- Minimum Weight - 8.1 pounds
