Standard Minitower

Dell OptiPlex Tower Plus 7020

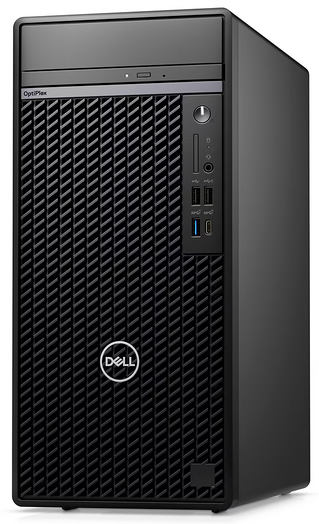

The front view of the Dell OptiPlex Tower Plus 7020.

Approximate Cost $1,100
Processor Intel Core i7 14700 (20 Core CPU)
Memory 16 GB DDR5 (1 of 4 slots filled)
Storage 256 GB Solid State Drive
Graphics Intel Graphics
Power Supply 260 W
Keyboard Wired Keyboard
Mouse Wired Mouse
Display Dell 22" Display (1920 x 1080)
Audio Dell Slim Soundbar
Warranty 3 Years

A view of the front and back of the Dell OptiPlex Tower Plus 7020 computer, showing the available ports with a number key.

Front Back
1.  Not Available in SCU Configuration 10.  Re-tasking Line-out/Line-in Audio Port
2.  Power Button 11.  Not Available in SCU Configuration
3.  Storage Activity Light 12.  3x DisplayPort 1.4a Ports (each up to 4096 x 2304 @ 60 Hz)
4.  Not Available in SCU Configuration 13.  Not Available in SCU Configuration
5.  Universal Audio Jack 14.  USB 3.2 Gen 2 Type-A Port
6.  USB 2.0 15.  3x USB 3.2 Gen 1 Type-A Port
7.  USB 2.0 with PowerShare 16.  2x USB 2.0 with SmartPower On
8.  USB 3.2 Gen 2 Type-A Port 17.  4x Expansion Cards Slots
9.  USB 3.2 Gen 2x2 Type-C Port 18.  Power Cord Connector
  19.  Power Supply Diagnostic Light
  20.  Release Latch
  21.  Padlock Ring
  22.  RJ-45 Ethernet
  23.  Kensington Security Cable Slot

Height - 14.45 inches

Depth - 11.84 inches

Width - 6.65 inches

Minimum Weight - 13.07 pounds
